Sliding Gate Opener kit

Description

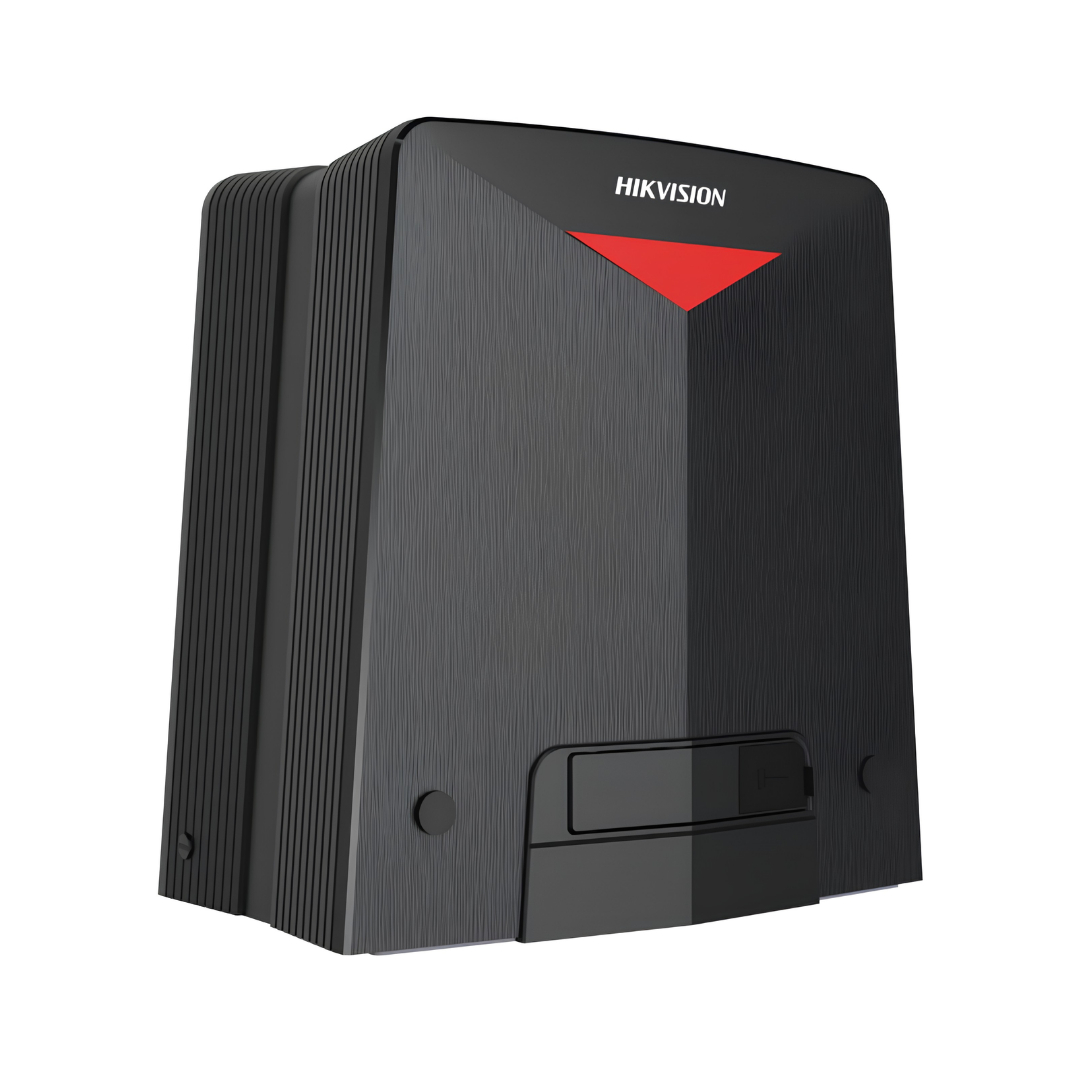

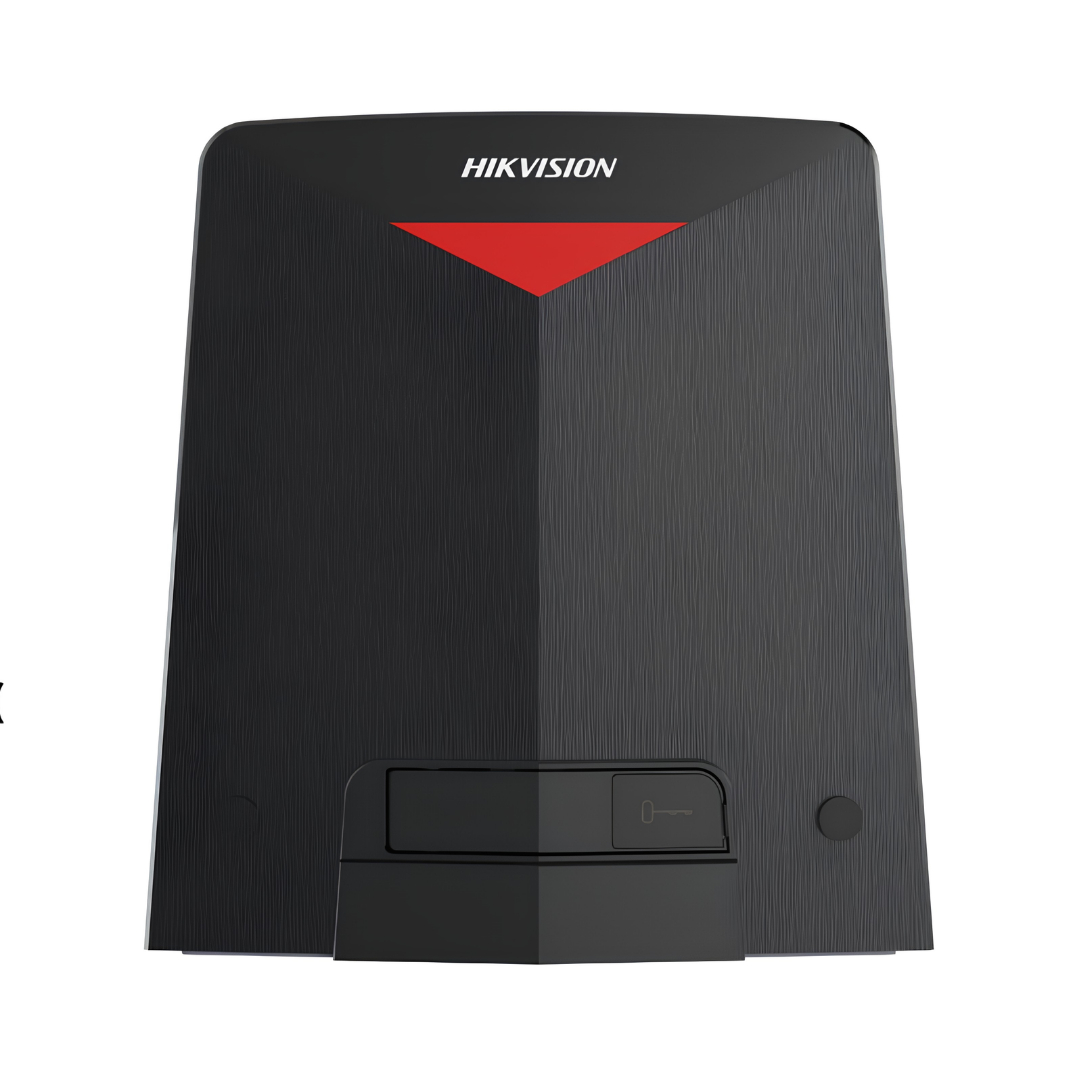

Automate gate access with the Hikvision DS-K3GL606WX-WE Sliding Gate Opener. Designed for residential, commercial and other controlled-access environments, this robust gate opener supports sliding gates weighing up to 600 kg and measuring up to 20 metres in length.

The brush motor provides an opening speed of up to 0.6 m/s, with a starting push force of 30 Kgf and rated push force of 17 Kgf. With an MCBF of at least 800,000 cycles, the opener is designed for reliable long-term operation.

The DS-K3GL606WX-WE features built-in Wi-Fi and 10/100 Mbps Ethernet, enabling convenient network management. It supports Hik-Connect, PC and mobile web configuration, and AP mode configuration through NFC for simplified setup. Optional 4G connectivity is also supported.

For added security and access flexibility, the system supports keyfobs, pedestrian mode, PIN, card and QR-code access when used with a compatible external card reader. It can also integrate with intercom, alarm and access-control systems for a more comprehensive security solution.

Key Features

• Supports gates up to 600 kg
• Maximum gate length of 20 metres
• Opening speed up to 0.6 m/s
• Brush motor
• 30 Kgf starting push force
• 17 Kgf rated push force
• MCBF of ≥800,000 cycles
• Built-in Wi-Fi
• 10/100 Mbps Ethernet
• Optional 4G connectivity
• Supports Hik-Connect
• Mobile and PC web configuration
• NFC-enabled AP mode configuration
• Supports 868 MHz keyfobs
• Up to 3,000 keyfobs
• Supports pedestrian mode
• Soft start and stop
• Reopen function
• Flashing light support
• Built-in access-control functions
• Supports integration with intercom and alarm systems
• Component status self-diagnostics
• Low-power mode for improved operation during power outages
• IPX5 protective rating

Connectivity & Integration

• Built-in Wi-Fi
• 10/100 Mbps Ethernet
• Optional 4G
• Hik-Connect
• TCP/IP and ISAPI
• RS-485
• Intercom integration
• Alarm integration
• Access-control integration
• External IR connection
• Emergency input
• Tamper input

Access Control

The DS-K3GL606WX-WE supports multiple access-control functions, including:

• 868 MHz wireless keyfobs
• Up to 3,000 keyfobs
• Up to 250,000 cards
• Up to 500,000 events
• PIN-code access
• Card access with compatible external reader
• QR-code access with compatible external reader
• Multi-factor authentication

Ideal For

• Residential compounds
• Gated communities
• Villas and estates
• Commercial premises
• Office complexes
• Warehouses
• Industrial facilities
• Schools and institutions
• Controlled vehicle entrances

What’s in the Box

• Hikvision DS-K3GL606WX-WE Sliding Gate Opener
• Wireless keyfobs
• Installation base
• Keys
• Installation screws
• Warning label
