DJI OSMO ACTION 5 PRO ADVENTURE COMBO

Description

Design & Build

• Dimensions: 70.4 mm x 44.1 mm x 32.6 mm; weight: 146 g including battery.
• IP68 dust and water resistance; native waterproofing to 20 meters without additional housing.
• Magnesium alloy frame with silicone grip texture and magnetic quick-release mounting system.

Display

• Front: 2.5-inch OLED, 1000 nits peak brightness, 60 Hz refresh rate, 326 ppi.
• Rear: 1.3-inch OLED, 800 nits peak brightness, 60 Hz refresh rate, 280 ppi.
• Both displays support Gorilla Glass 5 protection and glove-touch operation.

Performance

• Rockchip RK3588 processor with 6 nm process node and dedicated AI image signal processor.
• Supports real-time horizon stabilization at 4K/120fps with 3-axis gimbal-equivalent electronic stabilization.
• Internal storage: 128 GB UFS 3.1 with microSD expansion up to 1 TB.

Cameras

• Primary sensor: 1/1.3-inch CMOS, 40 MP effective resolution, f/2.8 aperture, 155° FOV, 1.0 μm pixel size with Quad Bayer.
• Video resolutions: 4K (3840×2160) at 120/60/30 fps, 1080p at 240/120/60 fps; supports 10-bit D-Log M and HLG.
• Photo modes: 40 MP single shot, 8K time-lapse, 40 MP burst at 30 fps, HDR photo.

Battery & Charging

• 1950 mAh 7.2V LiPo battery; up to 240 minutes runtime at 1080p/30fps with EIS on.
• 30W PD fast charging via USB-C; full charge in 45 minutes; supports 10W wireless charging in combo accessories.

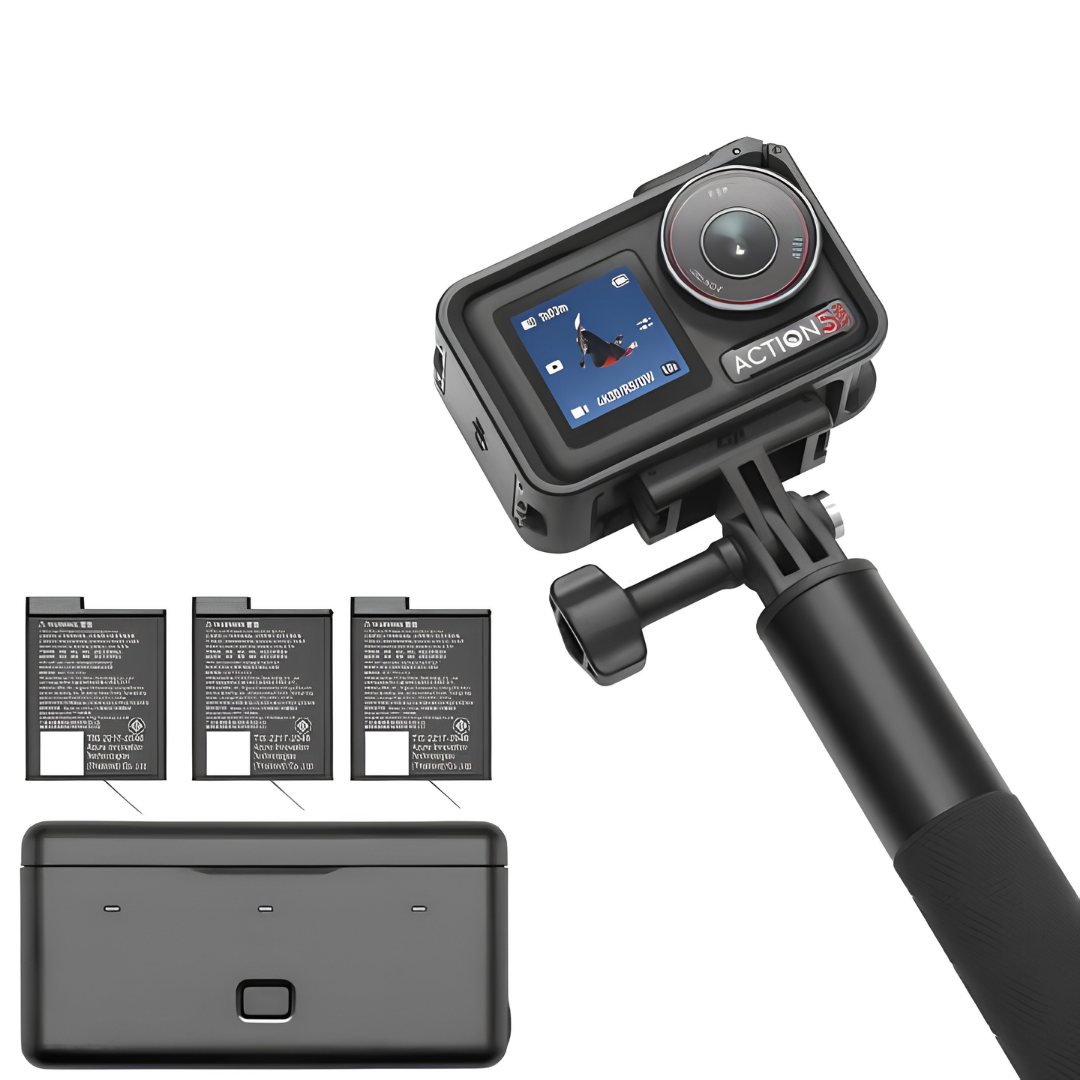

• Adventure Combo includes three batteries and 30W GaN charger.

Software & AI

• DJI Mimo app integration with AI subject tracking, voice control, and automatic editing templates.
• Firmware supports 4K/120fps with active track and gesture control.
• Color profiles: D-Log M, HLG, Normal, Vivid; supports 10-bit color depth.

Connectivity

• Wi-Fi 6 (802.11ax), Bluetooth 5.2, USB-C 3.2 Gen 1 with 10 Gbps transfer.
• Supports live streaming at 1080p/60fps to YouTube and custom RTMP.
• Timecode sync via Bluetooth for multi-camera setups.

Colors

• Available in Adventure Gray with black accents and matte finish; combo includes additional magnetic mounts in matching gray.
