MICROSOFT ARC MOUSE

Description

Design & Build

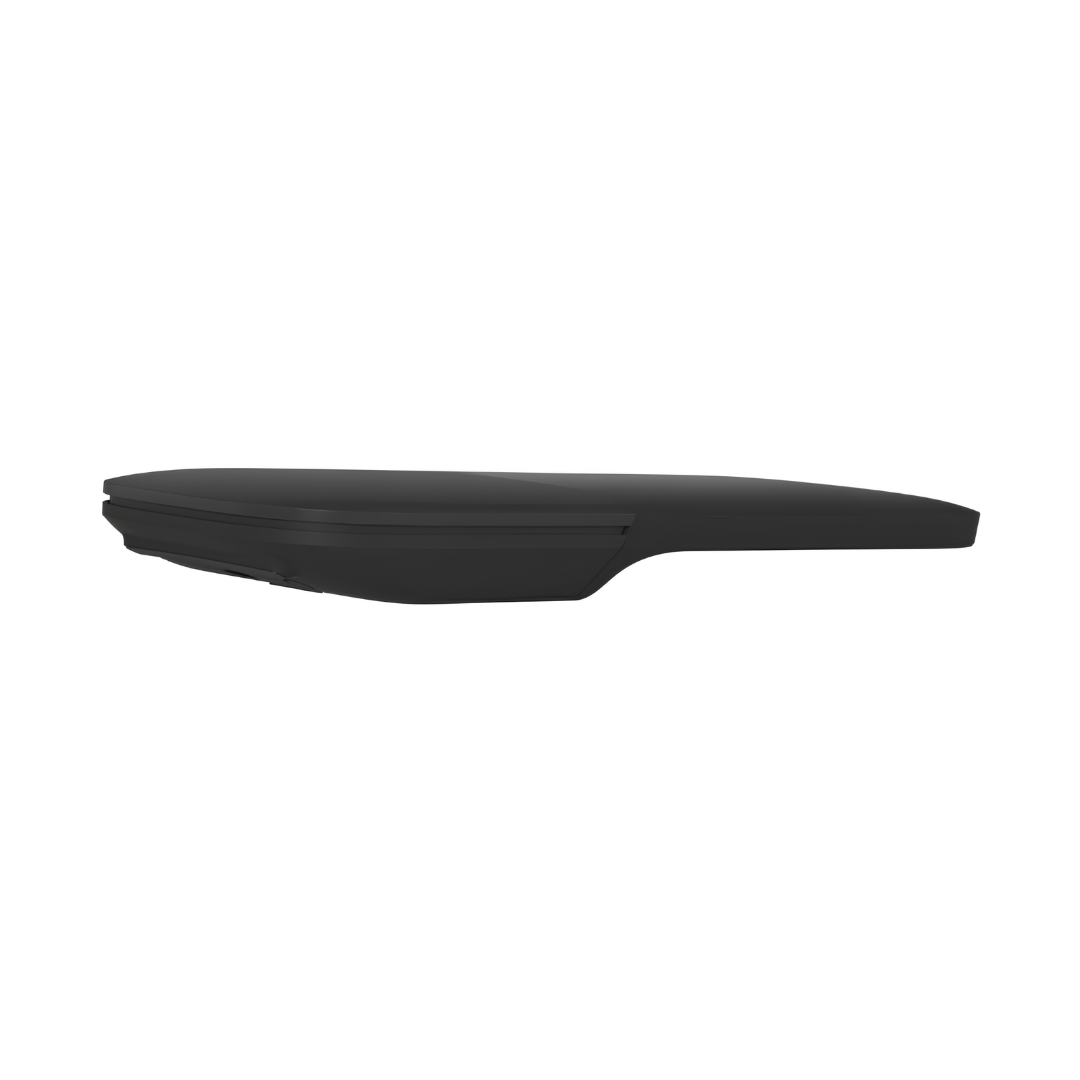

• Dimensions: 131.4 mm length x 55.2 mm width x 14.5 mm height when flat, folds to 55.2 mm x 55.2 mm x 26 mm, constructed from magnesium alloy chassis with soft-touch coating.
• Weight: 82.8 grams including batteries.
• Durability: IP54 dust and splash resistance rating, tested for 5 million click cycles on primary buttons.

Display

• Indicator: Single blue LED status light with 470 nm wavelength for pairing and low-battery notification at 10% remaining capacity.

Performance

• Sensor: PixArt PAW3205 optical sensor at 1000 DPI fixed resolution, tracking speed up to 30 inches per second with 30G acceleration support.
• Polling Rate: 125 Hz report rate over Bluetooth connection.

Cameras

• N/A: No camera hardware present; optical navigation uses infrared LED at 850 nm wavelength instead of imaging sensors.

Battery & Charging

• Power Source: Two AAA alkaline batteries rated at 1.5V 1200 mAh each, non-rechargeable, with estimated 6-month life at 4 hours daily use.
• Power Management: Auto-sleep after 4 minutes inactivity consuming less than 0.5 mA in standby.

Software & AI

• Compatibility: Microsoft Mouse and Keyboard Center software for Windows 10/11 with gesture customization, no AI features implemented.

Connectivity

• Wireless: Bluetooth 4.0 Low Energy, HID profile compliant, 10-meter line-of-sight range, supports up to 3 paired devices with manual switching.

Colors

• Options: Available in Matte Black, Ice Blue, and Poppy Red finishes with consistent 0.2 mm coating thickness.
