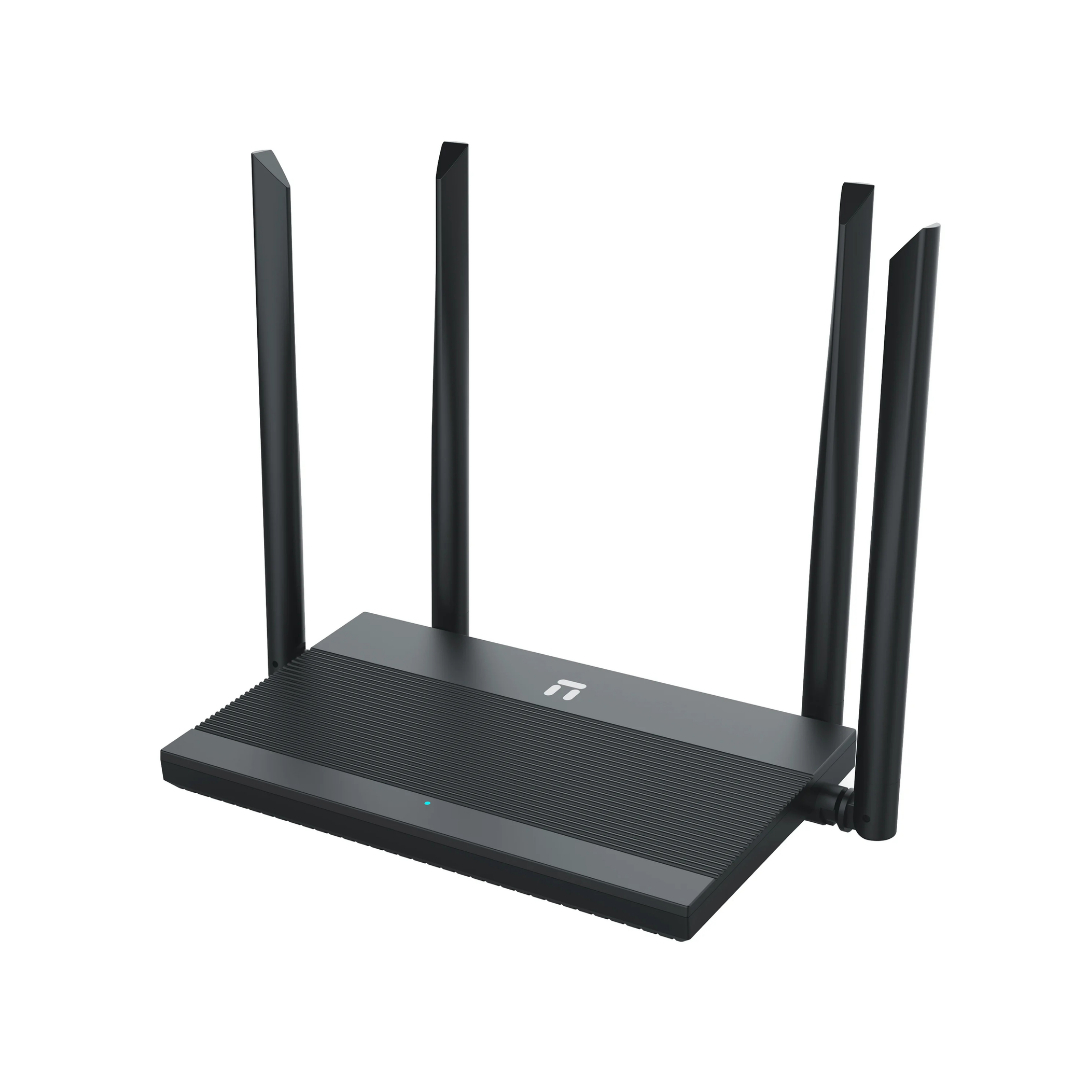

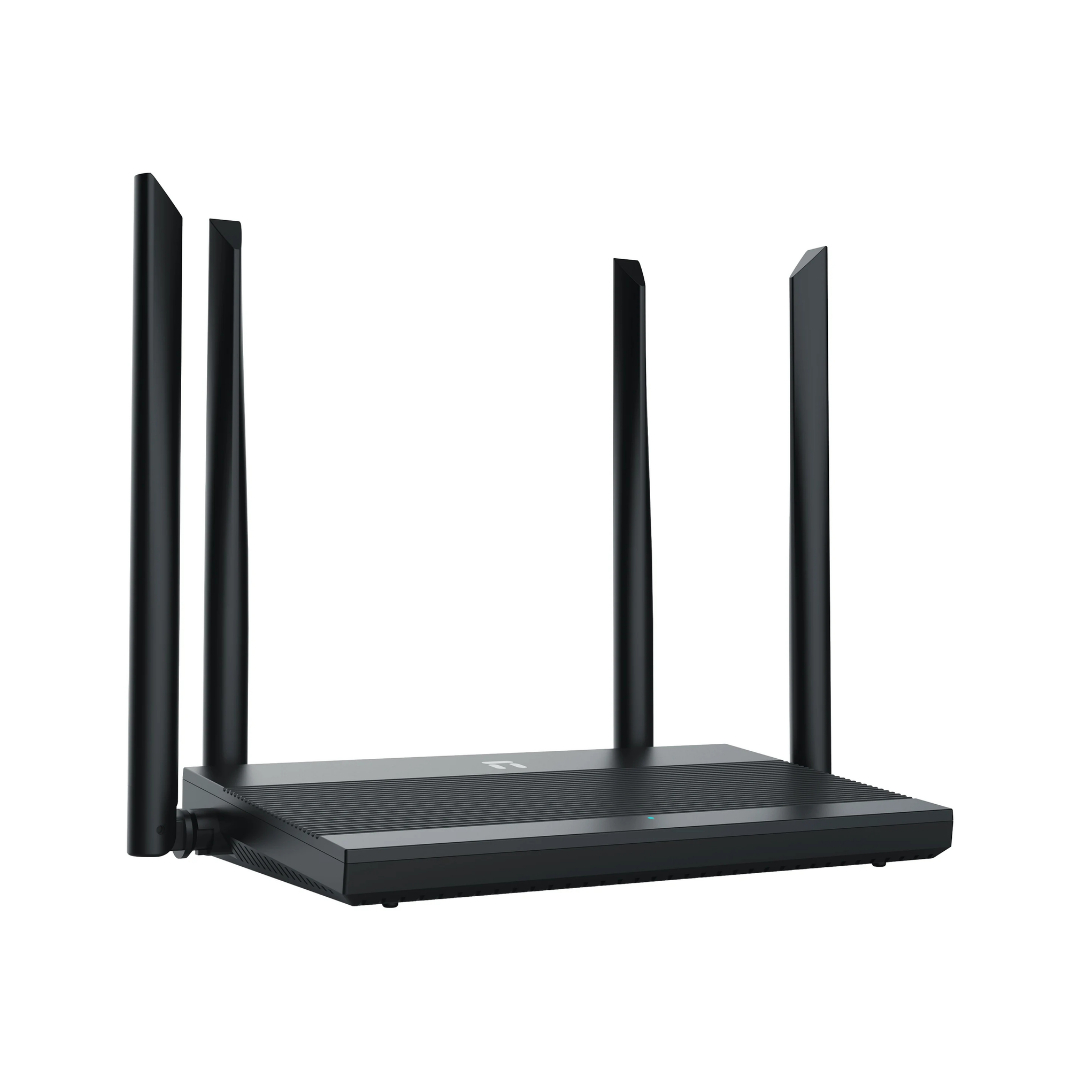

Netis N3D AC1200

Description

The Netis N3D AC1200 is an entry-level Wi-Fi 5 dual-band router engineered by Netis Systems. It provides a balance of enhanced data streaming capabilities and wide coverage for apartments, 3-bedroom homes, or small offices

Hardware Core & Performance

• Processor: Driven by a 1GHz Realtek High-performance SoC (System on Chip) optimized for managing heavy network routing tasks efficiently.
• Memory Configuration: Equipped with 128MB DDR RAM paired with 8MB Flash memory. This high-memory cache prevents performance bottlenecks and allows the router to coordinate multi-device queues smoothly.
• Capacity: Architected to handle a high device density, supporting up to 60 active concurrent client connections.

Wireless Capabilities & Signal Architecture

• Dual-Band Speeds: Delivers combined Wi-Fi speeds up to 1167 Mbps (AC1200).
  • 5 GHz Band: 867 Mbps via 802.11ac for low-latency tasks like HD streaming and online gaming.
  • 2.4 GHz Band: 300 Mbps via 802.11n for long-range, everyday browsing.

• Antenna System: Features 4 external 5dBi high-gain fixed omnidirectional antennas arranged in a signal-boosting array to blanket multiple directions.
• Signal Amplification: Integrated with High-Power FEMs (Front-End Modules) / internal Power Amplifiers (PAs) for both bands. This amplifies transmission power, boosting broad physical range coverage by roughly 30% over entry-level units lacking discrete PAs.
• Advanced Transmission Tech:
  • MU-MIMO: Communicates data to multiple Wi-Fi 5 clients simultaneously instead of sequencing connections.
  • Beamforming: Explicitly pinpoints the physical location of connected wireless devices to focus directional signals directly at them rather than broadcasting uniformly.
  • Airtime Fairness: Prevents lagging or older clients from monopolizing wireless capacity.

Interface & Physical Topology

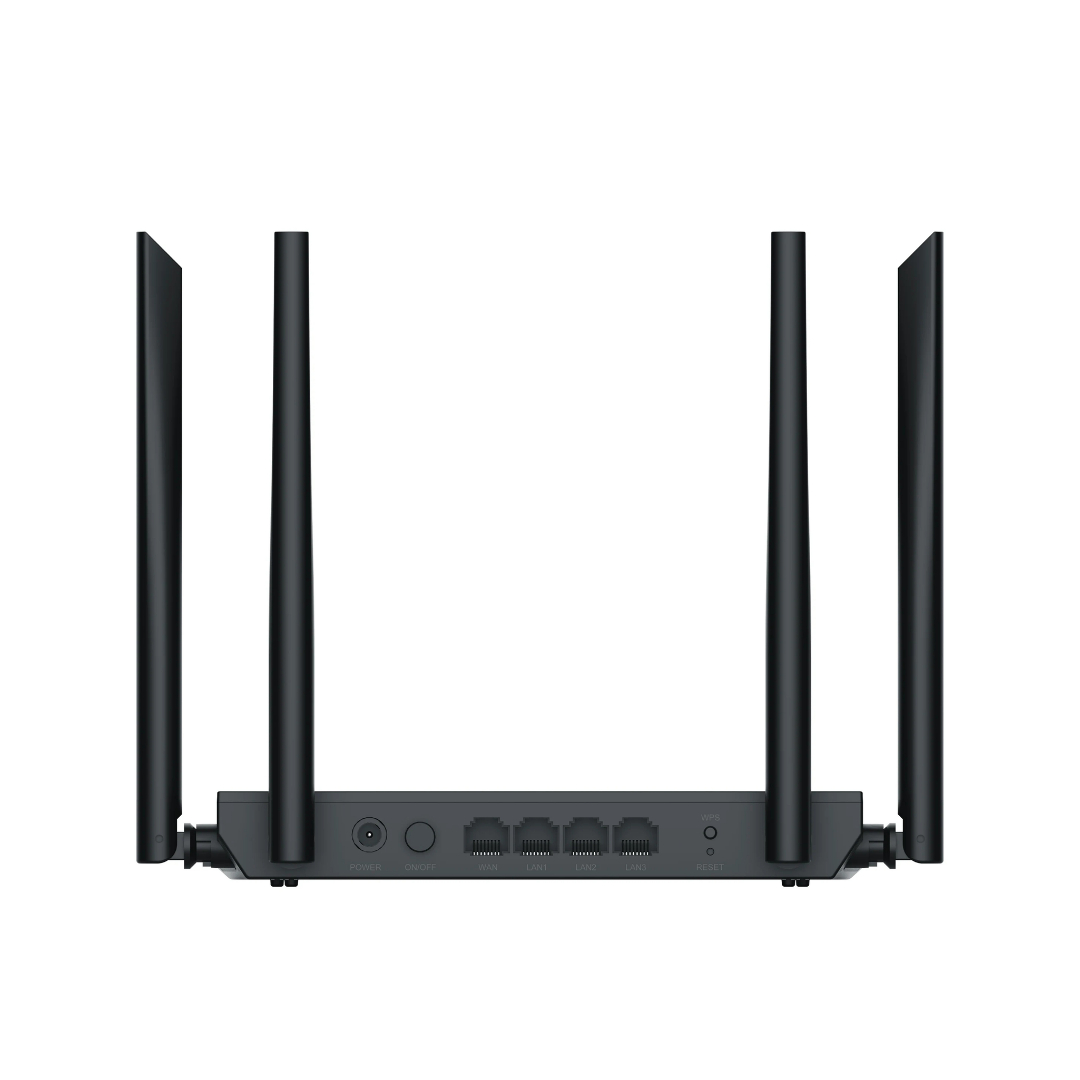

• Ports:
  • 1 x 10/100Mbps Fast WAN Port (receives internet connection from your modem).
  • 3 x 10/100Mbps Fast LAN Ports (for hardwiring smart TVs, desktop PCs, or consoles).

• Physical Buttons: Standard multi-functional WPS/Mesh button, a discrete Reset button, and an independent Power ON/OFF switch.
• Chassis Thermal Engineering: Built with a discrete, hidden heat dissipation design to maintain lower operating temperatures under continuous load.
• Dimensions: 228mm x 134mm x 188mm.

Software Features & Network Management

• Flexible Operational Modes: Capable of running as a standard AP Router, Repeater Mode (to repeat another Wi-Fi network’s signal), or Client Mode (acting as a wireless adapter for a wired-only device).
• WAN Connectivity Profiles: Supports a wide variety of access standards including Dynamic IP (DHCP), Static IP, PPPoE, L2TP, and PPTP.
• Bandwidth Control (QoS): Includes intelligent bandwidth allocation policies. Administrators can cap or prioritize bandwidth usage per computer or device to avoid bandwidth hogging.
• Security & Access Control:
  • Encryption Profiles: Supports older WEP alongside secure WPA-PSK, WPA2-PSK, and mixed WPA/WPA2-PSK protocols.
  • Guest Isolation: Supports Multi-SSID configurations, providing up to two isolated guest networks (1 x 2.4GHz and 1 x 5GHz) to secure your primary LAN.
  • Network Security: Features built-in Access Control lists, IP/MAC hardware filtering, and custom scheduled operational plans.

• IP Compliance: Fully compatible with both IPv4 and IPv6 network standards.
• Multimedia & Management Utilities: Supports IPTV Bridge and Tag VLAN options. Network tools feature remote management, Dynamic DNS (DynDns, No-IP), automated backup/restore, a diagnostic watchdog, and a built-in multilingual management web portal.
