Netis WF2409E

Description

The Netis WF2409E is a single-band, entry-level 300Mbps wireless router optimized for everyday home networks and small office environments

Hardware Architecture & Interfacing

• Core Processor & Memory: Built with an upgraded 1GHz CPU coupled with 64MB RAM and 8MB Flash Memory to handle multiple concurrent device connections and data processing without bottlenecking.
• Physical Ports:
  • 1 x 10/100 Mbps RJ45 WAN port for incoming broadband connections.
  • 4 x 10/100 Mbps RJ45 LAN ports featuring auto-uplink (Auto MDI/MDI-X) for stable wired connectivity to PCs, game consoles, and smart TVs.

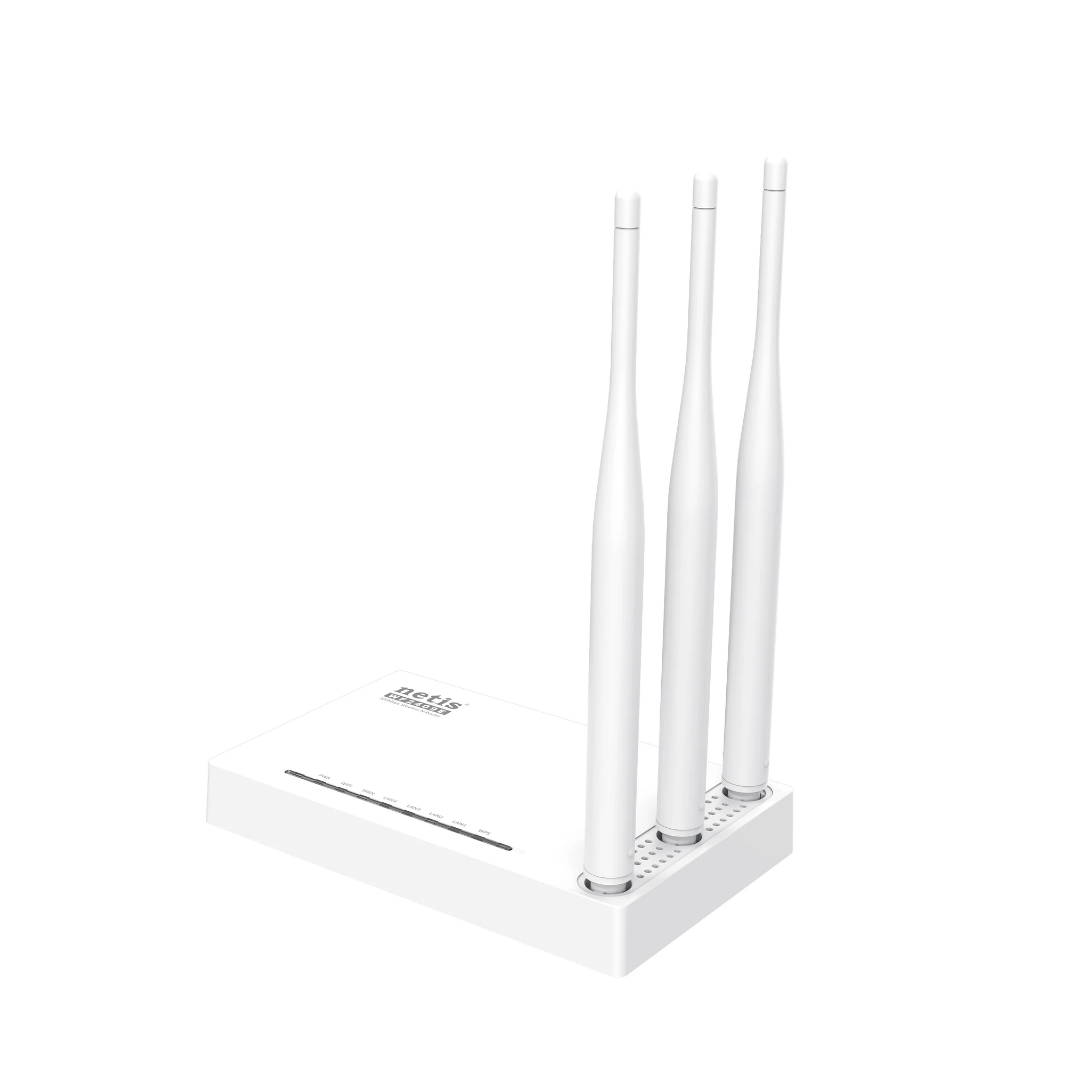

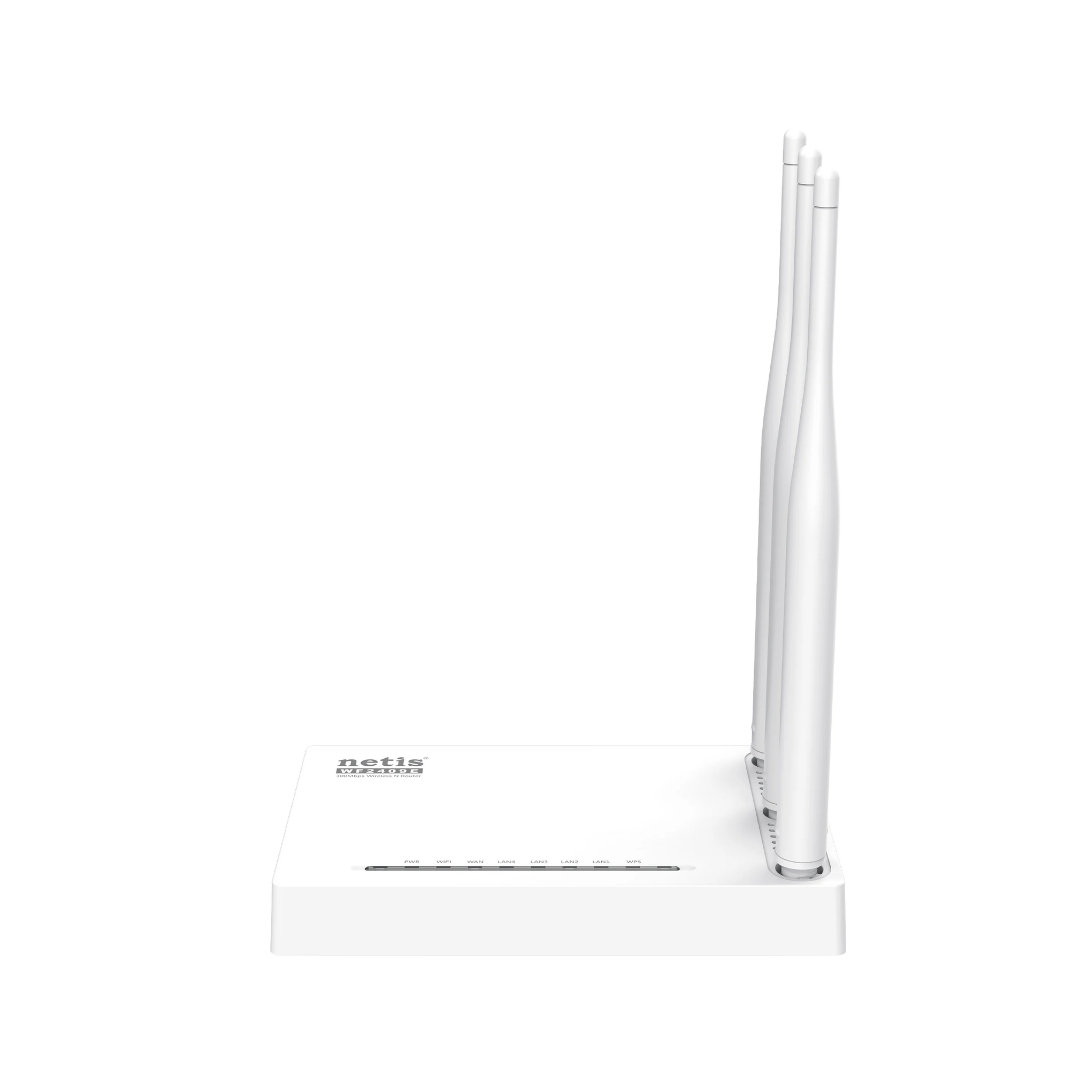

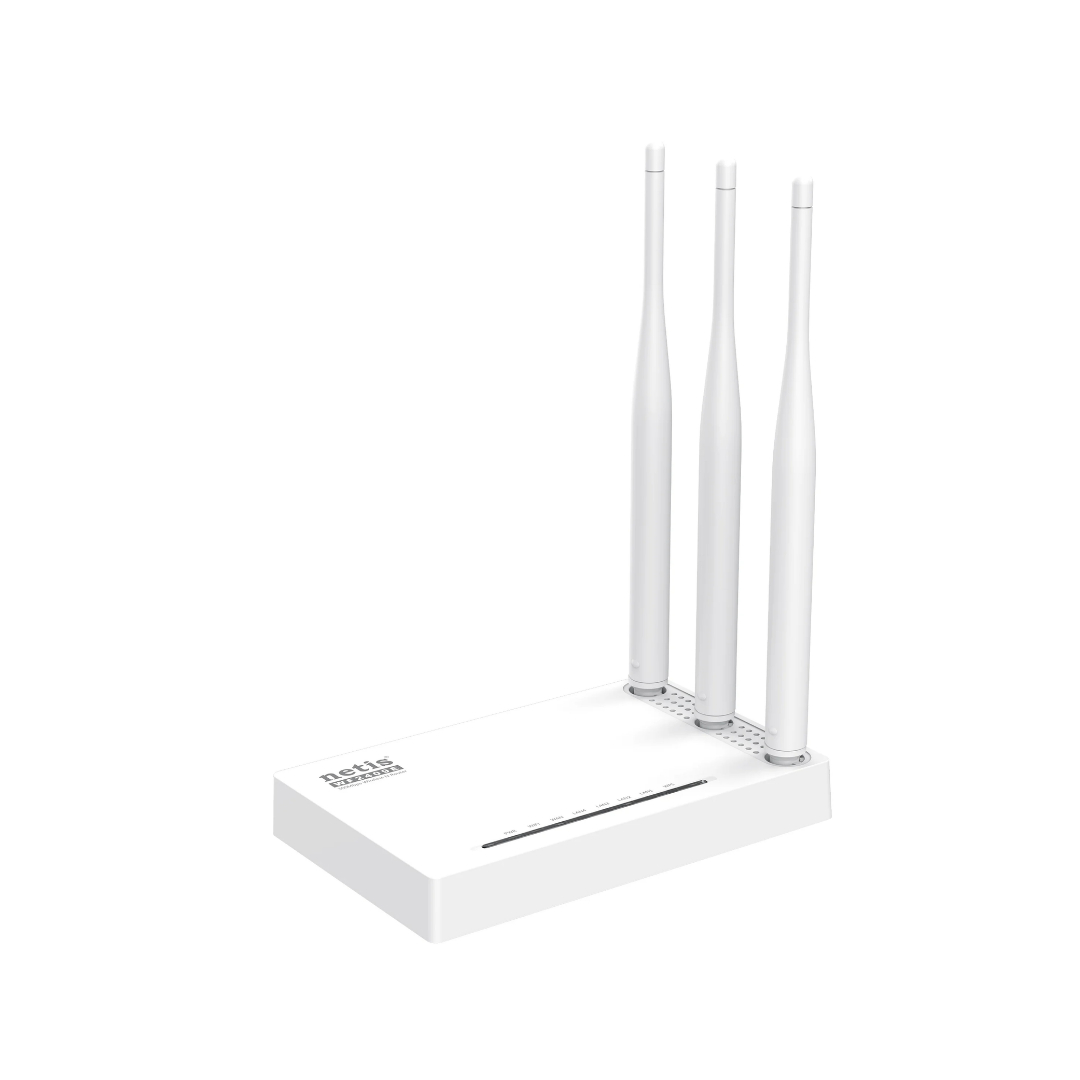

• Antenna Design: Three fixed 5dBi external antennas operating on a Multi-Input Multi-Output (MIMO) configuration to enhance signal penetration and maximize spatial wireless coverage.
• LED Status Elements: Front-facing indicators for Power, WLAN, WAN, and localized LAN port links.

Wireless Performance Parameters

• Frequency Band: 2.4 GHz single-band system (2.4 GHz to 2.4835 GHz). [
• Data Transmission Rates: Compatible with IEEE 802.11b/g/n, supporting a maximum physical link rate of 300 Mbps.
• Transmit Output Power: Up to 20dBm (Max).
• Wi-Fi Deployment Configurations:
  • Access Point (AP): Basic wireless network source.
  • Repeater / Range Extender: Wireless signal booster.
  • WDS / AP+WDS: Wireless Distribution System for building a linked multi-router matrix.
  • Client: Functions as a wireless adapter for legacy wired-only machines.

Software & Firmware Capabilities

• WAN Interface Provisioning: Supports DHCP (Dynamic IP), PPPoE, Static IP, L2TP, PPTP, Dual Access, and WISP client modes.
• Network Segmenting (Multi-SSID): Supports up to 3 additional isolated SSIDs, separating guest traffic from the internal local area network.
• Quality of Service (QoS): IP-based and MAC-based Intelligent Bandwidth Control maps custom data thresholds across designated connected hosts to mitigate traffic crowding.
• IPTV & Infrastructure Compatibility: Pre-engineered firmware support for IPv6 routing and TR069 remote provider management protocols.

Network Security & Access Controls

• Encryption Standards: Native support for WEP (64/128-bit), WPA-PSK, and WPA2-PSK (using either TKIP or AES).
• Firewall Access Control Lists: Time-based firewall controls mapping IP filtering, MAC address tracking, and Domain/URL keywords to limit unauthorized device access or restrict inappropriate local content.
• One-Touch WPS: Built-in hardware Wi-Fi Protected Setup button for physical device pairings without password entry.

Physical Dimensions & Power Requirements

• Form Factor: Compact desktop enclosure with integrated wall-mount brackets.
• Power Supply: External DC 9V / 500mA power adapter

Ideal for

Small to Medium Homes and Apartments

• Coverage Needs: The three 5dBi antennas provide solid signal penetration through standard drywall, making it perfect for 1–2 bedroom apartments or single-story houses up to roughly 1,000 sq. ft.
• Basic Smart Homes: Ideal for connecting a few essential smart devices like smart plugs, smart bulbs, and basic security cameras that rely strictly on a 2.4 GHz connection.

Low to Moderate Internet Speeds

• Plan Speeds Up to 100 Mbps: Because the physical WAN and LAN ports are capped at 10/100 Mbps, this router is ideal if your internet plan is 100 Mbps or lower (e.g., standard DSL, basic fiber, or fixed wireless). Note: If you pay for a 200+ Mbps plan, this router will bottleneck your speed.
• Everyday Web Activities: Perfectly optimized for standard tasks like web browsing, checking emails, online schooling, working from home (Zoom/Teams calls), and streaming HD video on 1 or 2 screens simultaneously.

Dead Zone Elimination (Secondary Router Roles)

• Wi-Fi Range Extension: Ideal to use as a cheap Repeater or Range Extender to catch your main router’s signal and push it into a back bedroom, garage, or basement.
• WISP Bridging: Excellent for rural or student setups where you need to connect wirelessly to a neighborhood Wireless Internet Service Provider (WISP) and share that connection locally inside your room.

Guest Networks & Student Dorms

• Shared Living: With its Multi-SSID feature, it is ideal for tenants or students who want to spin up a separate guest network so visitors can use the internet without accessing private network files or shared printers.
• Bandwidth Control: Perfect for households where one person hoards the internet; parents or network admins can cap specific devices so everyone gets a fair share of the bandwidth.
