Samsung S26 Ultra

Description

Design & Build

• Dimensions: 162.3 mm height x 77.9 mm width x 8.2 mm thickness.
• Weight: 233 grams with titanium alloy frame and IP68 dust/water resistance rating.
• Build materials: Grade 5 titanium frame, Gorilla Glass Victus 3 on front and back panels, matte finish options.
• S Pen support with 2.8 mm tip diameter and 4096 pressure levels integrated in chassis.

Display

• 6.8-inch Dynamic AMOLED 2X panel with 1440 x 3120 resolution at 505 ppi.
• Adaptive refresh rate from 1 Hz to 120 Hz with LTPO3 technology.
• Peak brightness of 3000 nits, HDR10+, Dolby Vision and 100% DCI-P3 color gamut coverage.
• Ultrasonic fingerprint sensor embedded under display with 0.15-second unlock time.

Performance

• Qualcomm Snapdragon 8 Elite chipset fabricated on 3 nm process node.
• CPU configuration: 2x Cortex-X5 at 4.5 GHz, 6x Cortex-A730/A520 cores.
• Adreno 840 GPU with hardware ray tracing support and 16 GB LPDDR5X RAM.
• 1 TB UFS 4.0 storage with 4200 MB/s sequential read speeds.

Cameras

• 200 MP main sensor (ISOCELL HP2, f/1.7, 23 mm, OIS, 1/1.3-inch).
• 50 MP ultrawide (f/2.2, 13 mm, 120-degree, 1/2.76-inch).
• 10 MP 3x telephoto (f/2.4, 69 mm, OIS, 1/3.52-inch).
• 50 MP 5x periscope telephoto (f/3.4, 111 mm, OIS, 1/2.52-inch).
• 12 MP front camera (f/2.2, 26 mm) with dual pixel PDAF.

Battery & Charging

• 5000 mAh lithium-ion battery with graphene cooling layer.
• 65W wired charging via USB-C 3.2 achieving 0-100% in 42 minutes.
• 25W wireless charging and 4.5W reverse wireless charging support.
• Power management with AI-optimized battery health up to 80% capacity retention after 1000 cycles.

Software & AI

• Android 16 with One UI 8.0 skin and 7 years of OS/security updates.
• Galaxy AI features including real-time translation, note assist and photo editing tools.
• NPU with 45 TOPS performance for on-device generative AI processing.
• Circle to Search and Live Translate with 16 language pairs.

Connectivity

• 5G SA/NSA with mmWave and sub-6 GHz support, peak 10 Gbps downlink.
• Wi-Fi 7 (802.11be) tri-band with 320 MHz channels and Bluetooth 5.4.
• UWB for precise device tracking and NFC for payments.
• USB-C 3.2 Gen 2 with DisplayPort 1.4 output and 10 Gbps data transfer.

Colors

• Titanium Black with matte anodized finish.
• Titanium Gray with brushed texture.

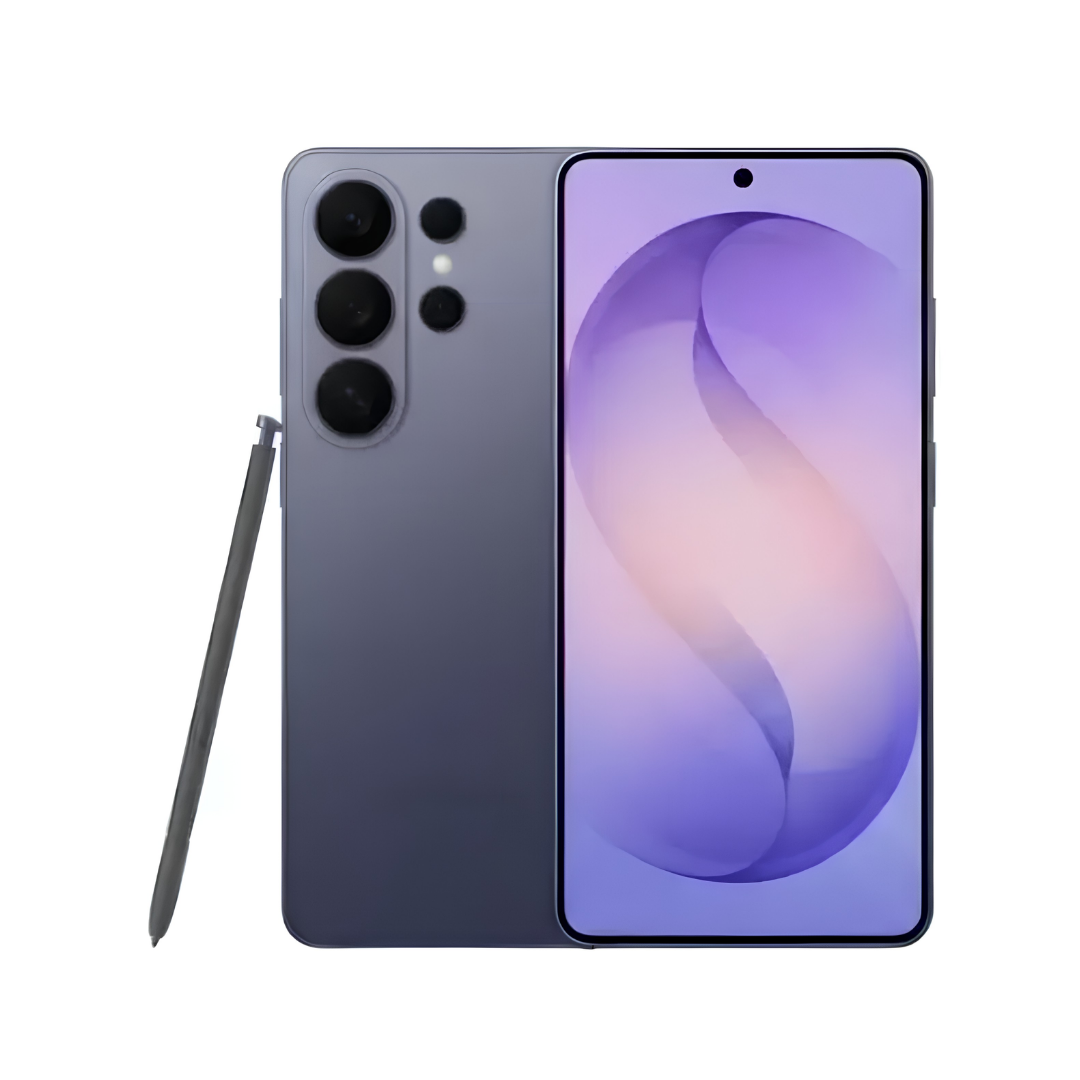

• Titanium Violet with iridescent coating.

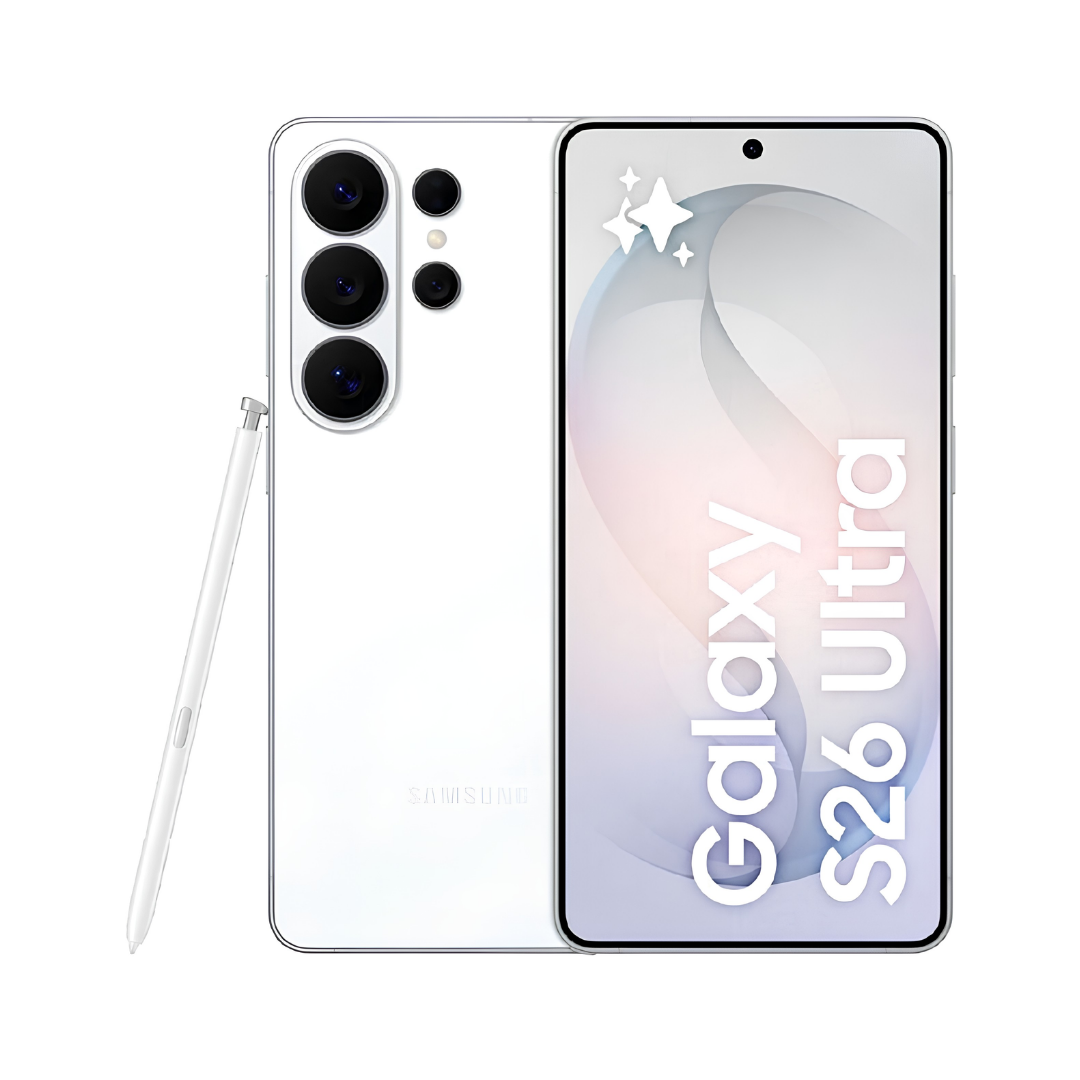

• Titanium White with ceramic-like polish.
