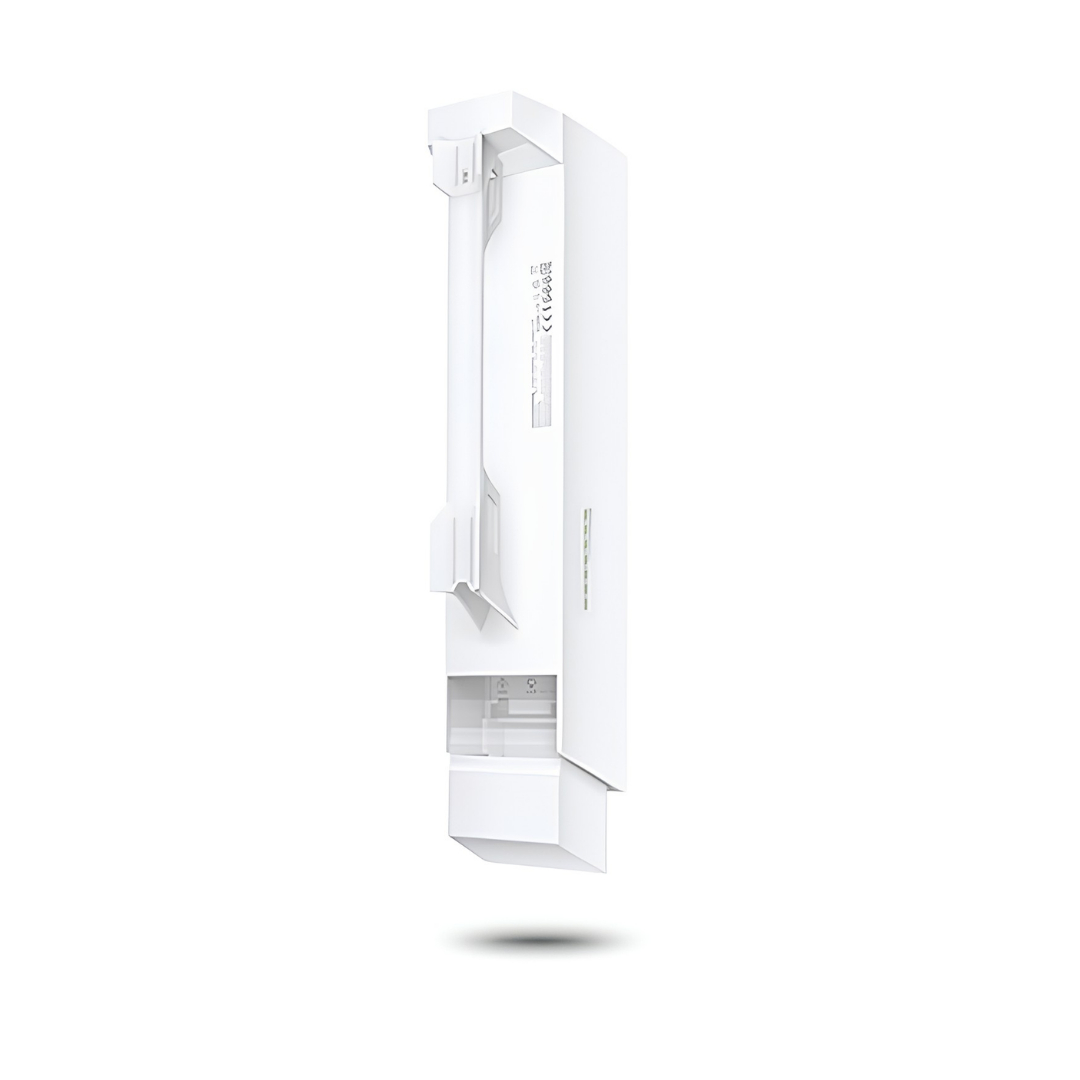

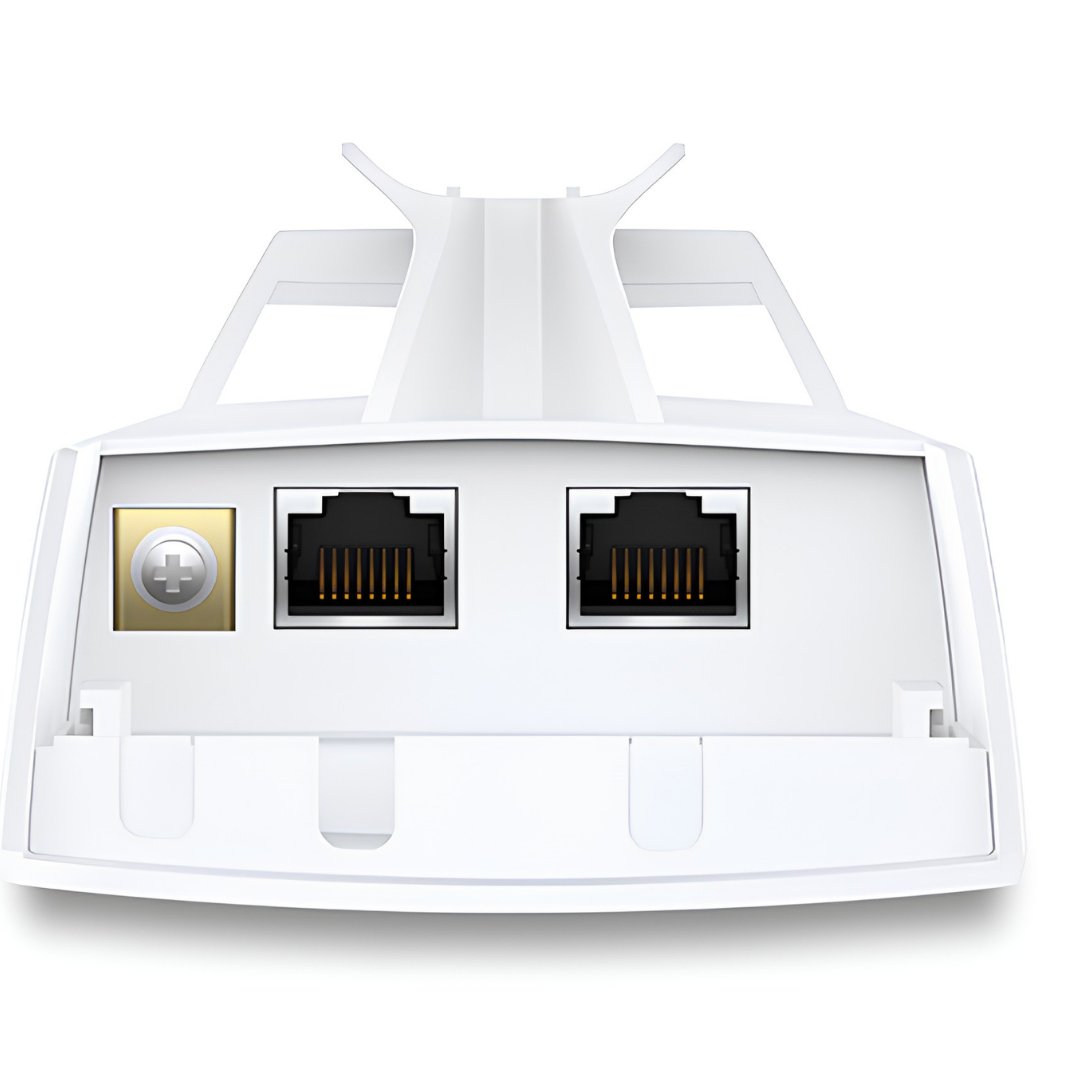

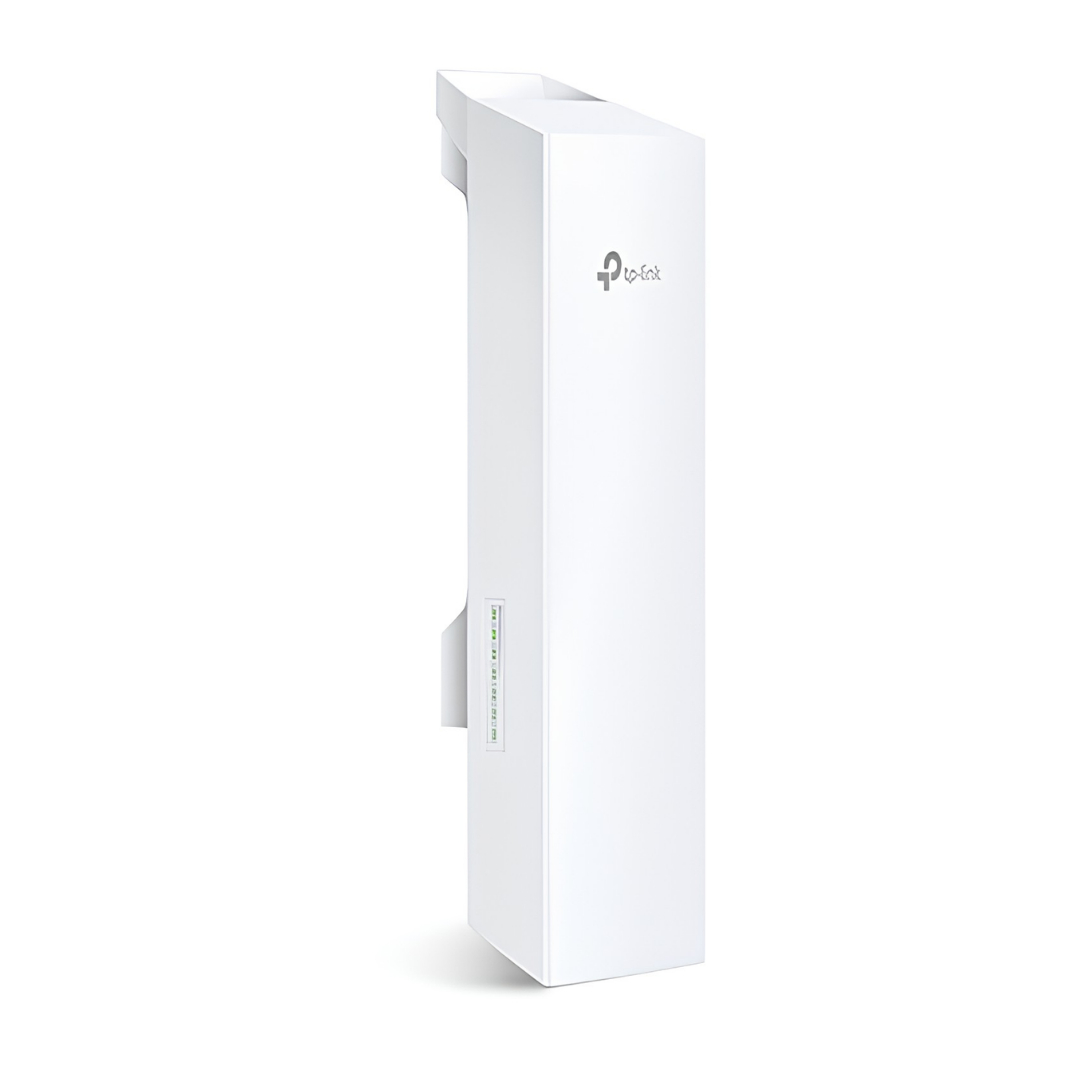

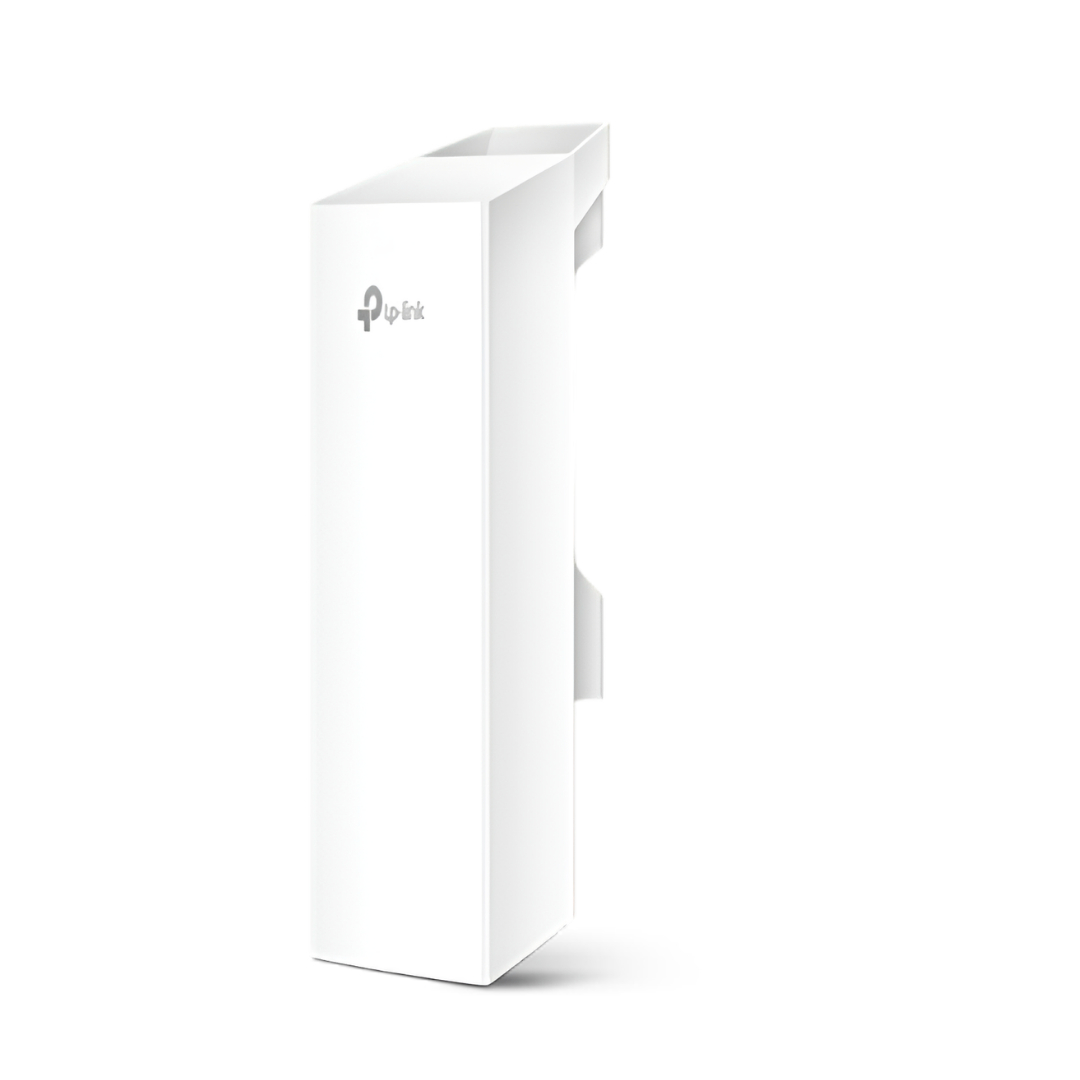

TP-Link CPE220

Description

The TP-Link CPE220 is a 2.4 GHz outdoor wireless CPE designed for cost-effective networking applications. It delivers wireless throughput of up to 300 Mbps using 2×2 MIMO and combines this with an integrated 12 dBi dual-polarized directional antenna for outdoor point-to-point and point-to-multipoint deployments.

Built for outdoor use, the CPE220 features an IPX5 weatherproof enclosure, 15 kV electrostatic discharge protection and 6 kV lightning protection. Its centralized management application supports flexible administration, while Power over Ethernet simplifies deployment by carrying power through the network connection.

Wireless Performance

• Wireless band: 2.4 GHz.
• Wireless speed: Up to 300 Mbps.
• MIMO: 2×2 MIMO.
• Antenna: 12 dBi dual-polarized directional antenna.

Outdoor Protection

• Weather resistance: IPX5 weatherproof design.
• ESD protection: 15 kV electrostatic discharge protection.
• Lightning protection: 6 kV lightning protection.

Network Management and Deployment

• Management: Centralized management application.
• Connection types: Suitable for point-to-point and point-to-multipoint connections.
• Coverage: Designed for outdoor Wi-Fi coverage applications.
• Power delivery: Power over Ethernet (PoE).

Ideal For

• Outdoor point-to-point wireless links.
• Outdoor point-to-multipoint network connections.
• Outdoor Wi-Fi coverage applications.
• Cost-effective outdoor wireless networking deployments.
