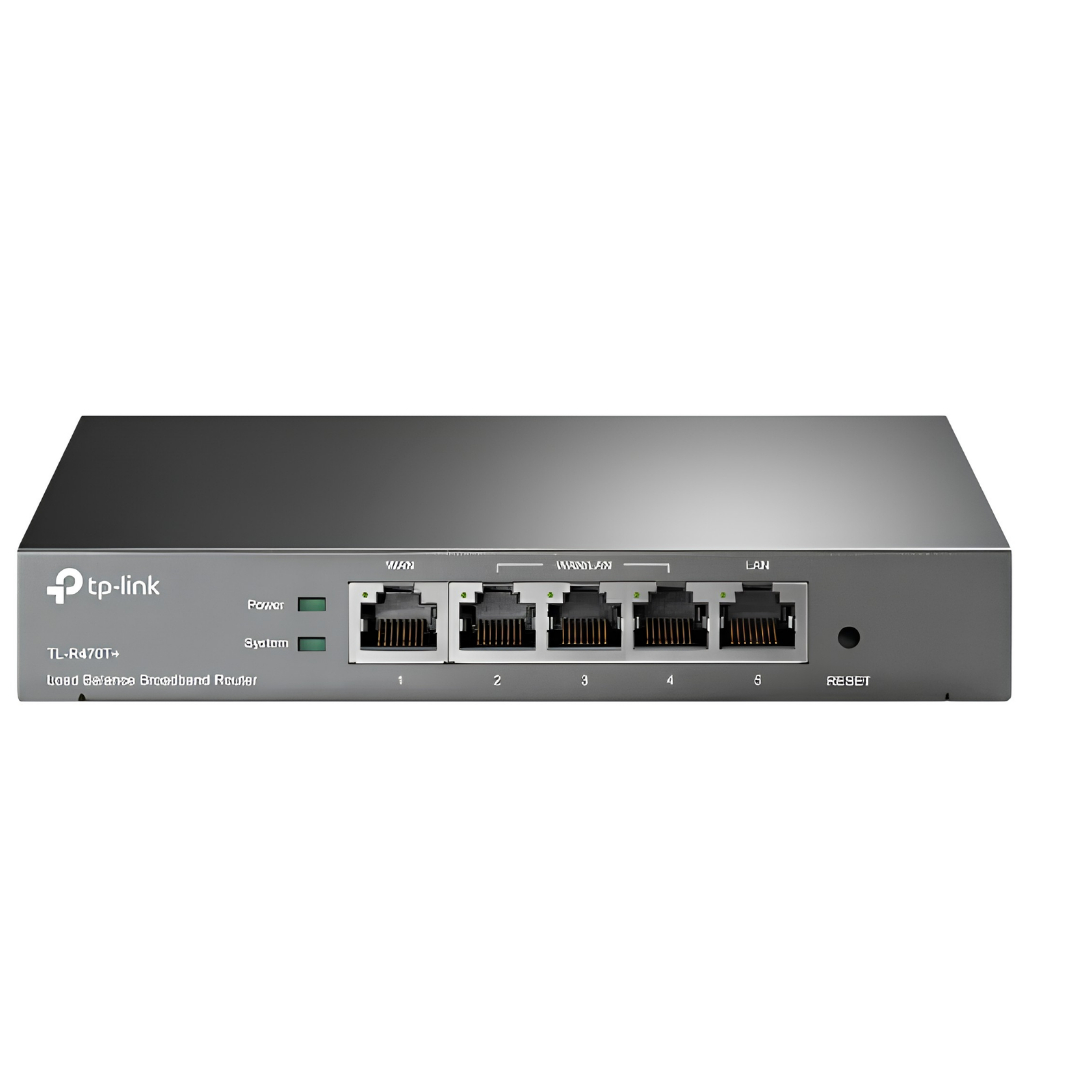

TP-Link TL-R470T+

Description

The TP-Link TL-R470T+ is a load balance broadband router designed to combine multiple Internet connections through one network device. Its three changeable WAN/LAN ports can be configured according to deployment needs, allowing support for up to four WAN ports and flexible access planning for small-business networks.

Smart load balancing automatically selects an efficient line according to current load and bandwidth requirements, while automatic failover helps maintain connectivity when a WAN connection is unavailable. IP- and MAC-based bandwidth control, advanced QoS, web-based management and integrated security features provide practical tools for managing network traffic and access.

Key Features

• Load Balancing: Uses smart load balancing to select an efficient Internet line according to load and bandwidth requirements.
• WAN Expansion: Supports up to four WAN ports through three changeable ports that can be configured as LAN or WAN.
• Automatic Failover: Supports automatic failover to help maintain uninterrupted Internet connectivity.
• Quality of Service: Integrates advanced QoS for network traffic management.
• Bandwidth Control: Provides bandwidth control based on IP and MAC addresses.

Ports and Connectivity

• WAN Port: One 10/100 WAN port.
• LAN Port: One 10/100 LAN port.
• Changeable Ports: Three 10/100 LAN ports that can be configured as LAN or WAN.
• Total Ethernet Ports: Five Ethernet LAN (RJ-45) ports.
• Ethernet Data Rate: Supports 10 and 100 Mbit/s Ethernet LAN connectivity.

Security and Management

• Management: Web-based management through a web utility.
• Filtering: Supports MAC address filtering, IP address filtering and DNS filtering.
• Protection: Includes DoS protection and a built-in firewall.
• Protocols: Supports TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP and DNS.
• Network Standards: Supports IEEE 802.3x, IEEE 802.3u and IEEE 802.3.
• Network Functions: Includes port forwarding and a reset button.

Ideal For

• Small businesses requiring multiple Internet connections.
• Offices needing flexible WAN and LAN port configuration.
• Networks requiring load balancing across multiple broadband connections.
• Deployments requiring automatic Internet connection failover.
• Users needing web-based network management, traffic control and firewall security.
