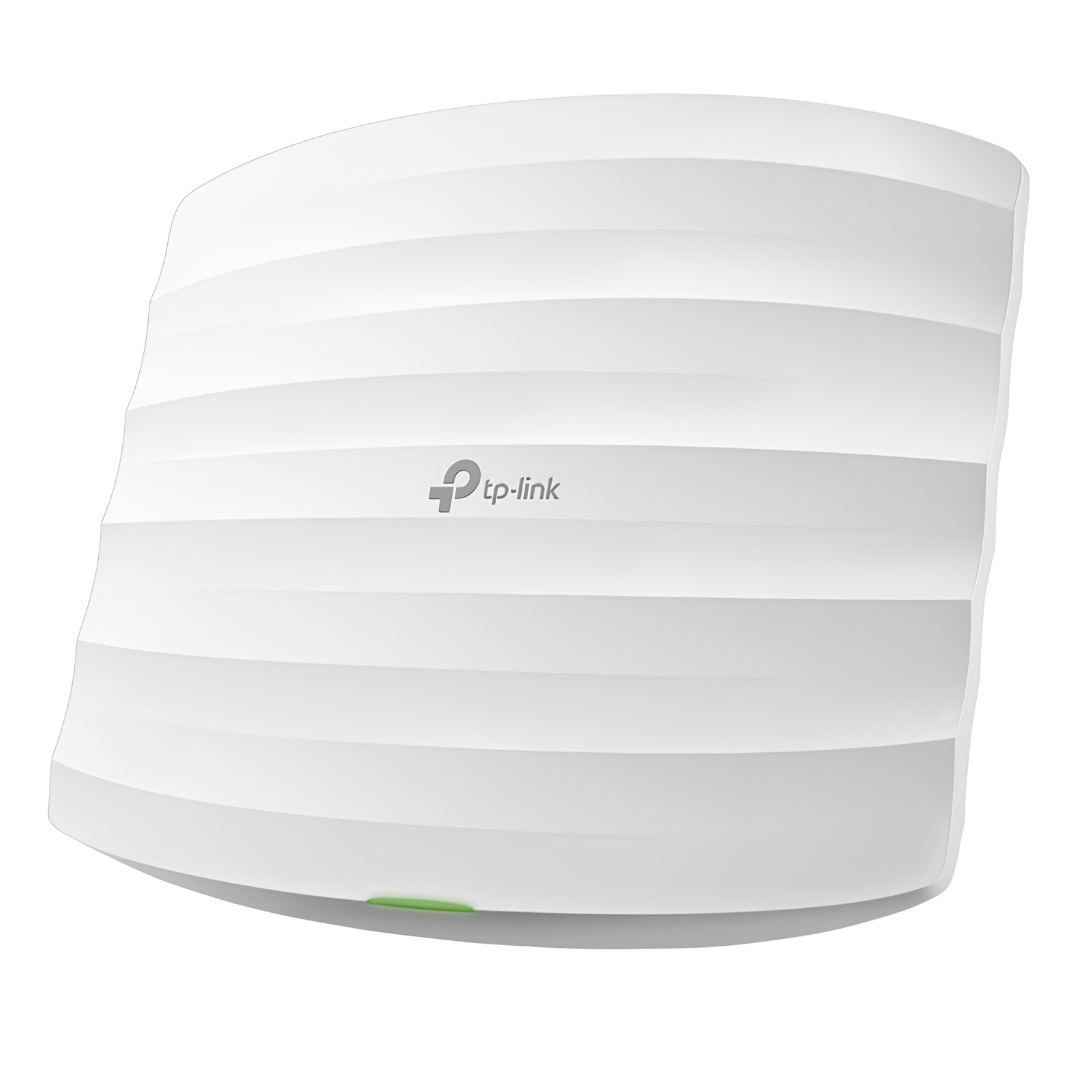

TP-Link EAP245 Ceiling Mount

Description

The TP-Link EAP245 is a dual-band AC1750 wireless access point designed to provide high-capacity Wi-Fi across offices, commercial spaces, and other larger open areas. Its 802.11ac Wave 2 MU-MIMO technology delivers combined wireless speeds of up to 1750 Mbps, with up to 1300 Mbps on the 5 GHz band and 450 Mbps on the 2.4 GHz band.

Built for flexible installation, the EAP245 combines a low-profile ceiling-mount chassis with wall- or ceiling-mount support. Power over Ethernet reduces cabling requirements, while support for both 802.3af PoE and Passive PoE allows deployment through a compatible PoE switch or the provided PoE adapter. Integration with Omada SDN adds centralized cloud management, Zero-Touch Provisioning, and intelligent monitoring for managed network deployments.

Wireless Performance

• Wireless Standard: Supports IEEE 802.11ac, 802.11n, 802.11g, 802.11b, and 802.11a wireless networking.
• Combined Wi-Fi Speed: Up to 1750 Mbps across both wireless bands.
• 5 GHz Band: Up to 1300 Mbps.
• 2.4 GHz Band: Up to 450 Mbps.
• MU-MIMO Technology: 802.11ac Wave 2 MU-MIMO enables the access point to serve multiple devices simultaneously.
• Radio Configuration: Three-stream radios operate on both the 2.4 GHz and 5 GHz bands.
• Wireless Hardware: QCA enterprise-class chipsets, a dedicated high-power amplifier, and a professional antenna support long-range coverage across both wireless bands.

Installation and Power

• Mounting: Designed for installation on a ceiling or wall.
• Chassis: Low-profile, easy-mount design blends with most interior décor styles.
• Power over Ethernet: PoE compatibility helps eliminate the need to run a separate power cable to the access point.
• PoE Standards: Supports IEEE 802.3af PoE and Passive PoE power.
• Power Options: Can be powered by a PoE switch or the provided PoE adapter.

Network Management

• Omada SDN Integration: Integrates with the Omada Software Defined Networking platform.
• Provisioning: Supports Zero-Touch Provisioning for streamlined deployment.
• Cloud Management: Enables centralized cloud management.
• Monitoring: Provides intelligent monitoring capabilities for managed network administration.

Ideal For

• Business offices requiring high-capacity dual-band wireless networking
• Large open-floor environments requiring long-range wireless coverage
• Commercial spaces using ceiling- or wall-mounted access points
• Managed network deployments using Omada SDN
• Installations requiring PoE-powered wireless access points
