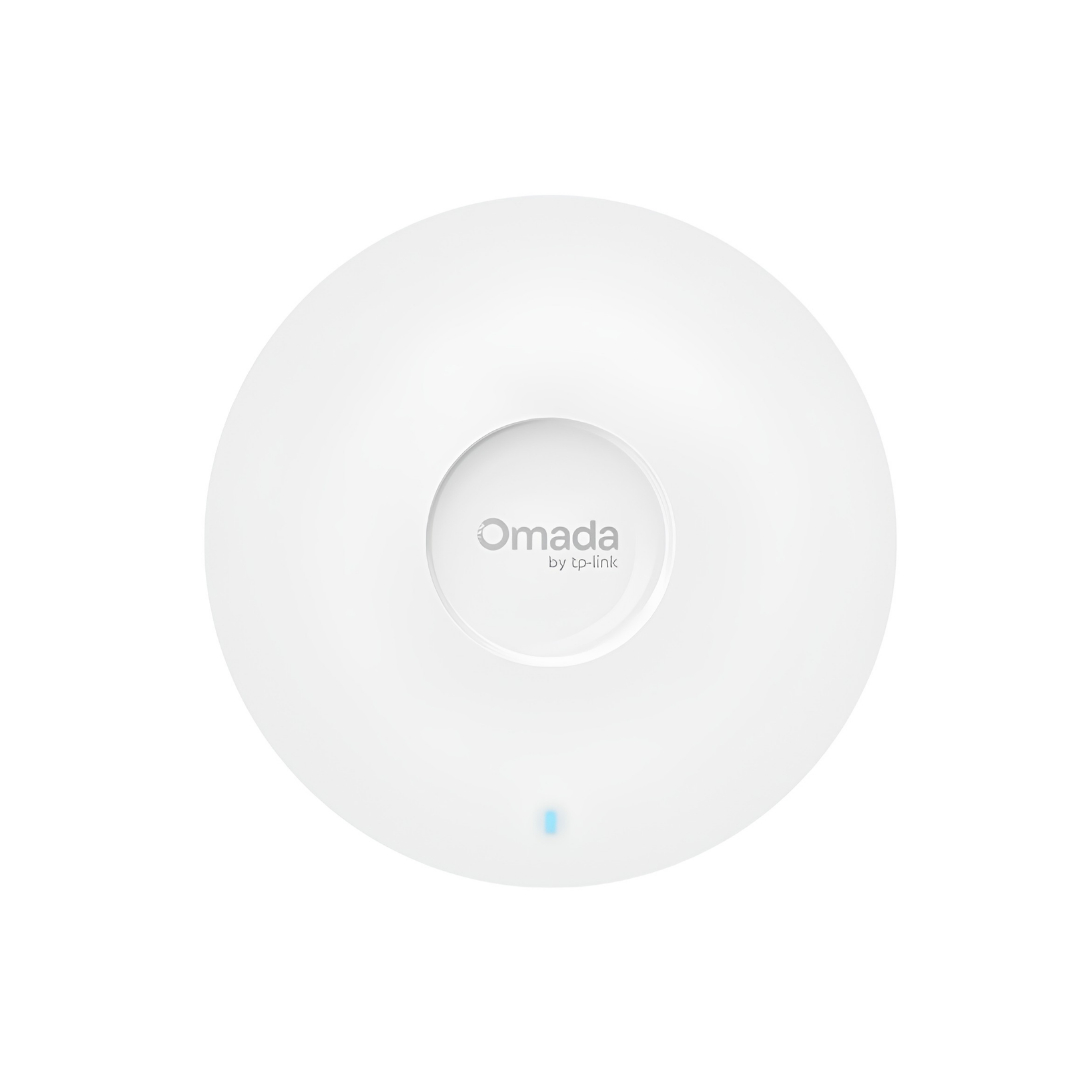

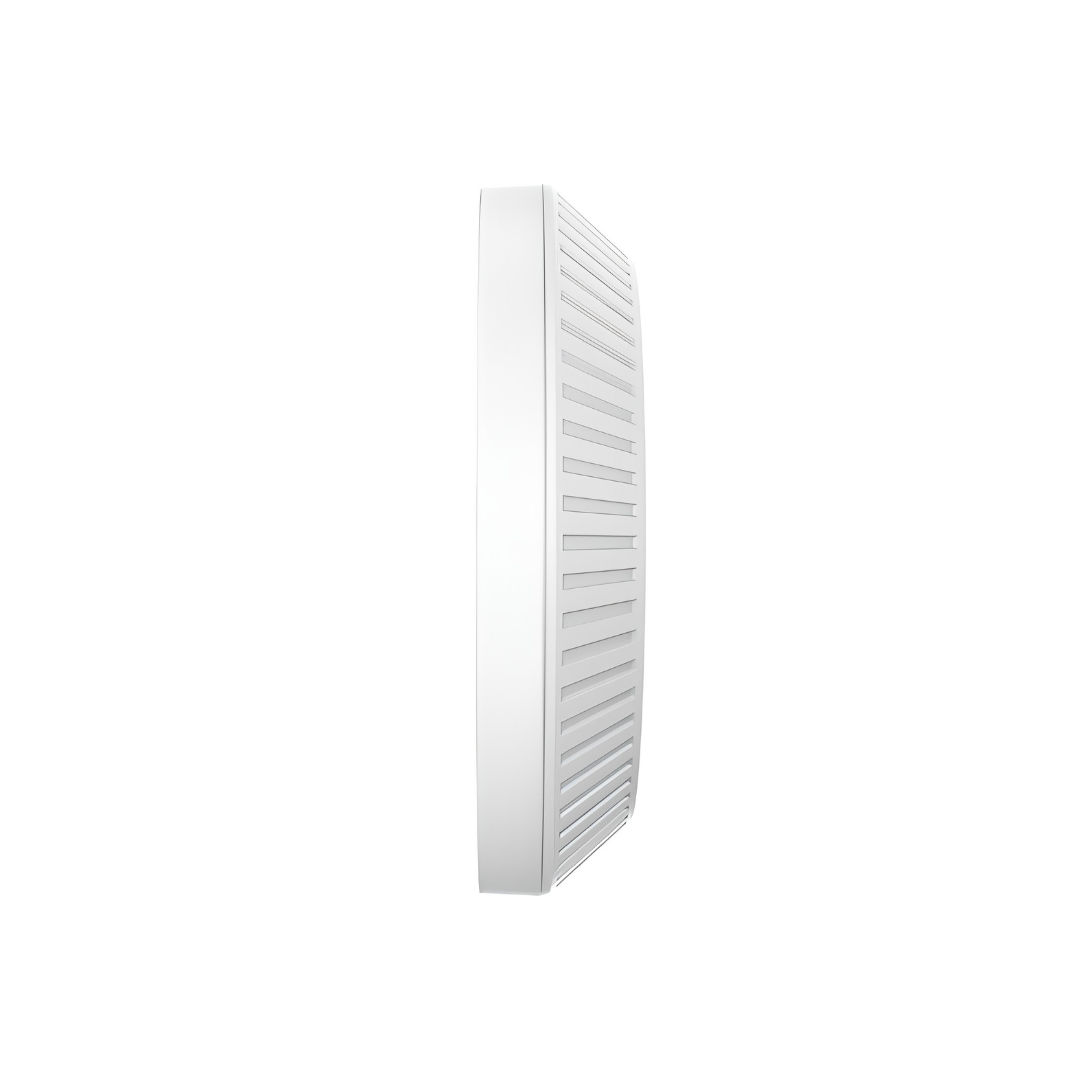

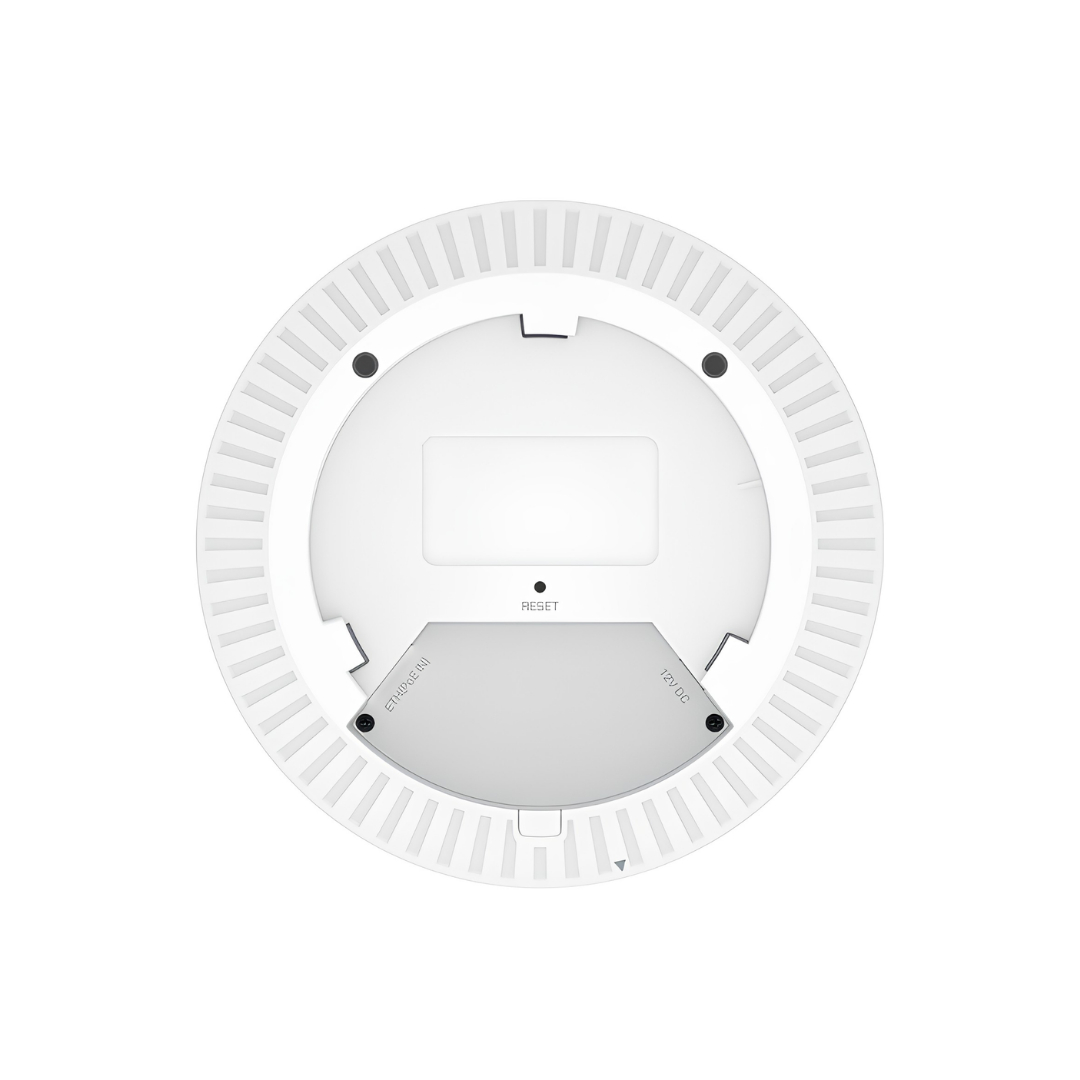

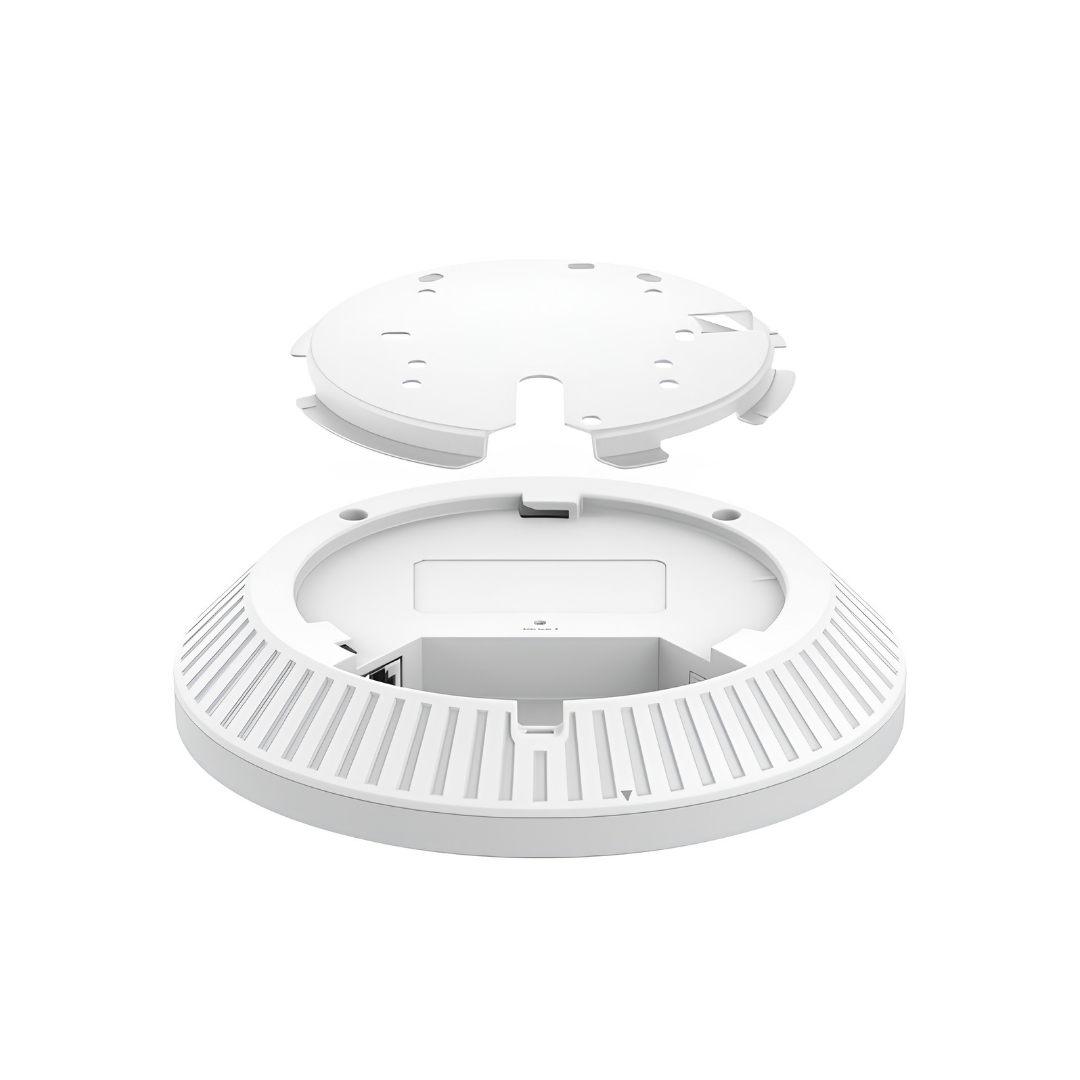

TP-Link EAP610 Ceiling Mount

Description

The TP-Link EAP610 is an AX1800 4-stream dual-band Wi-Fi 6 ceiling-mount access point designed to provide fast, reliable, and secure wireless connectivity in business environments. With simultaneous wireless rates of up to 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5 GHz band, it provides a capable foundation for upgrading networks from older 802.11n or early 802.11ac access points.

Built for centralized network deployment, the EAP610 supports local or cloud-based management through a web user interface or the Omada app. Its high-efficiency Wi-Fi 6 capabilities, mesh support, seamless roaming, and flexible power options make it suitable for offices, hospitality venues, schools, restaurants, meeting rooms, and similar installations.

Wireless Performance

• Wireless Standard: IEEE 802.11a/b/g/n/ac/ax Wi-Fi 6.
• Wireless Class: AX1800 dual-band access point with 4-stream wireless design.
• 2.4 GHz Data Rate: Up to 574 Mbps.
• 5 GHz Data Rate: Up to 1201 Mbps.
• Wireless Client Capacity: Supports 250+ wireless clients.
• Antennas: 2x 4 dBi antennas on 2.4 GHz and 2x 5 dBi antennas on 5 GHz.

Network Interfaces and Power

• Ethernet Interface: 1x Gigabit Ethernet port.
• Power Options: Supports 802.3at PoE, Passive PoE, and DC power supply.
• DC Power: Uses a 12V 1A power supply for the EAP610.

Management and Connectivity Features

• Centralized Management: Manage the network locally or from the cloud through a web user interface or the Omada app.
• Wi-Fi 6 Efficiency: Designed to provide faster wireless performance for more connected devices.
• Mesh Networking: Supports mesh networking for expanded wireless coverage.
• Seamless Roaming: Supports seamless roaming across compatible network deployments.
• Installation Type: Ceiling-mount access point design for business environments.

Ideal For

• Business offices
• Hospitality environments
• Schools and educational facilities
• Restaurants
• Meeting rooms
• Other business Wi-Fi 6 network deployments
